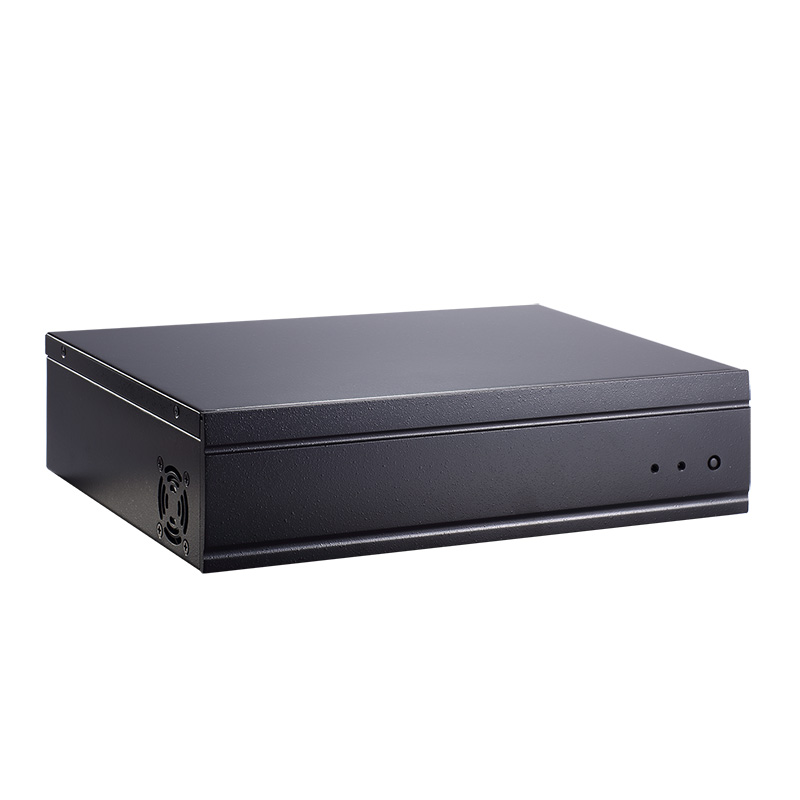

AX-ECM500-560 Mini Industrial pc

RM0.01

The AX-ECM500-560 is a super compact mini Industrial PC system equip with all the necessary IO interface with single slot PCiex16 for IO expansion.

built in with Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Pentium® or Celeron® Processor option, with DisplayPort, HDMI, VGA, LVDS, USB 3.2, M.2, and Dual GbE LAN



Ubuntu Linux +
Windows 10 Pro / IOT +
Windows 11 Pro / IOT +

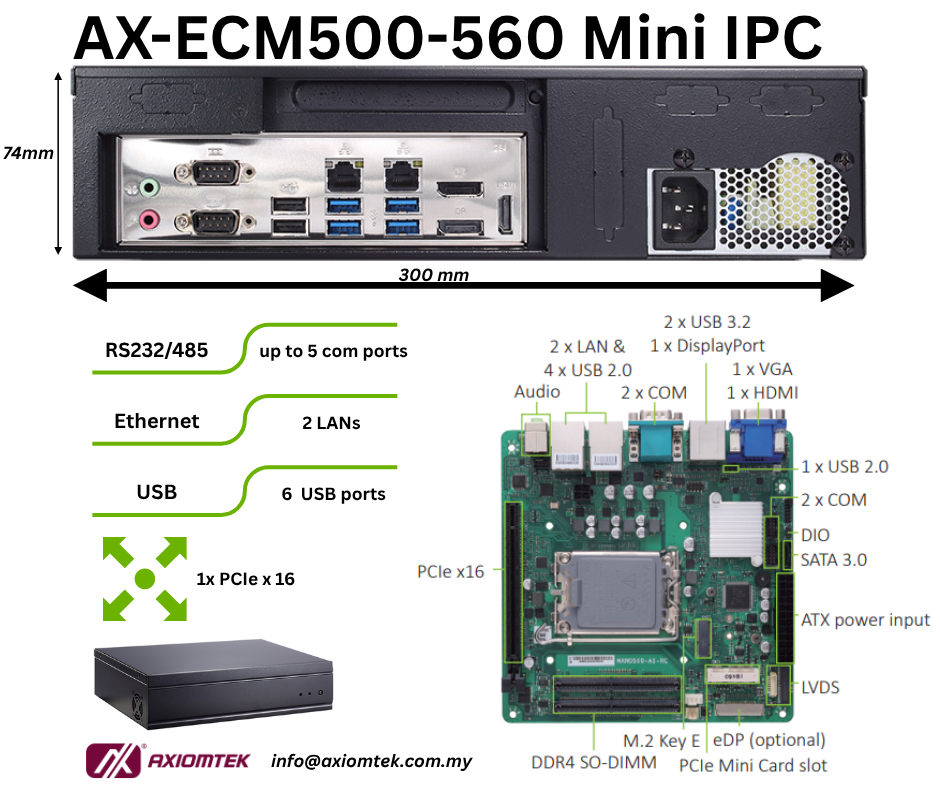

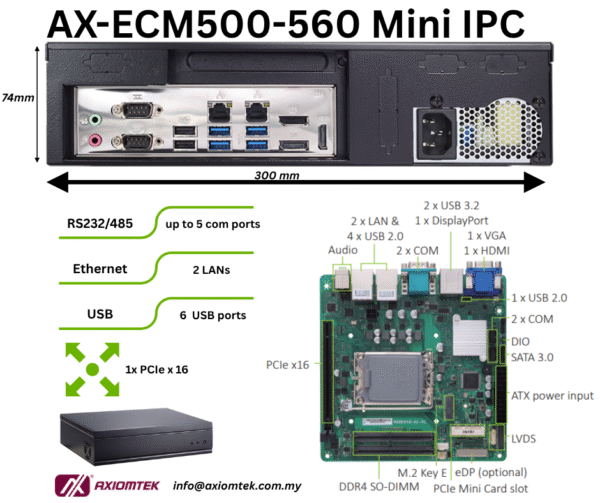

Features

  • Super compact mini Industrial PC
  • Single slot PCiex16 for IO / vision/ motion card expansion
  • LGA1700 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
  • Intel® H610 chipset
  • 2 DDR4 SO-DIMM for up to 64GB memory
  • 2 USB 3.2 Gen1 and 5 USB 2.0
  • 4 COM ports
  • 1 PCIe x16 and 1 M.2 Key E slot
  • 1 full-size PCI Express Mini Card slot
  • 1 SATA-600
  • 1 M.2 Key B for USB 3.2 interface 5G module
