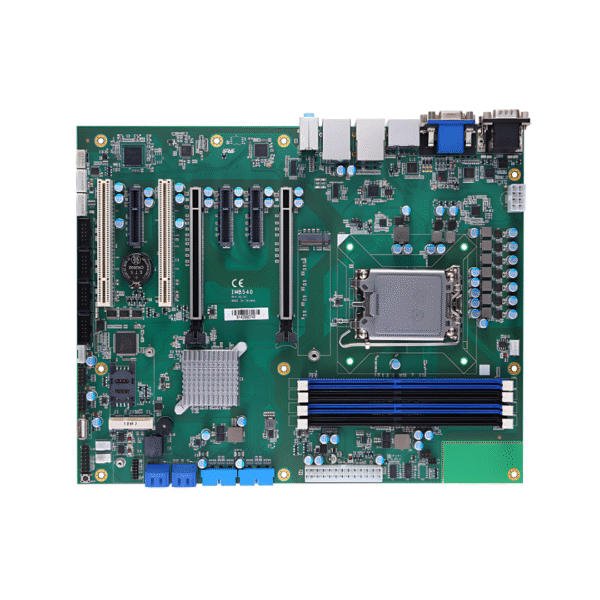

IMB540_1
AX-420-1U-540-HRP Server - Image 4
AX-420-1U-540-HRP Server - Image 5

AX-420-1U-540-HRP Server

RM0.01

AX-420-1U-540-HRP Server

1U Rackmount server for storage, SCADA, network or cloud servers with 450W hot swap redundant power supply.



Features:

  • LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Raptor Lake-S Refresh)
  • Intel® R680E chipset (long life time support)
  • 4 x 288-pin DDR4-3200 ECC/Non-ECC un-buffered Long-
    DIMM, up to 128GB (ECC memory is available for Intel®
    R680E only)
  • 1 x 10/100/1000/2500 Mbps with Intel® I225-LM supporting Wake-on-LAN, PXE Boot ROM, TSN, and Intel® AMT with Intel vPro®
    1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT supporting Wake-on-LAN and PXE Boot ROM
  • Desktop and Rackmount capable
  • Preloaded with Microsoft Windows 10 / 11 Pro or IOT Enterprise High End 64-bit / optional server
    OS / Linux OS
Ubuntu Linux +
Windows SERVER 2019 +
Red hat linux +
CENTOS +
Category: Tags: , , , , ,

Model : AX-420-1U-540-HRP Server

Specification:

Structure:  1U Rackmount Server with Hot Swap Redundant Power Supply

Size : (L) 420 x (W) 437.5 x (H) 44.5mm

Disk drive support : 4 x SATA-600 2.5″ Disk Bays with option RAID 0/1/5/10*

Rear 4x USB 3.2 (standard) + 2x USB 3.2 (internal) + 5x USB 2.0 (internal)

Processor System
CPU Supports 14th/13th/12th Gen Intel Core i9/i7/i5/i3, Pentium or Celeron Processors, up to 125W (Raptor Lake-S Refresh)
Socket LGA1700
Thermal Design Power Up to 125W by proper cooling solution
Chipset Intel® R680E
 System Memory
Supported DIMM Quantity 4 x DDR4-3200 ECC/Non-ECC un-buffered Long-DIMM, up to 128GB
Supported Type 4 x DDR4-3200 ECC/Non-ECC un-buffered Long-DIMM, up to 128GB
Max. Capacity per DIMM 32GB (128GB total)
Max. DIMM Frequency 3200 MHz or MT/s
Voltage 1.1V
 PCIe Expansion Interface
PCIe x 16 2 x PCIe Gen4 x16 (signal: x16 + x0 or x8 + x8)
PCIe x 4 3 x PCIe x4 slot open ended (1 x Gen3 + 2 x Gen4) (signal by PCH)
PCIe Mini Card 1 x PCIe Mini Card slot (signal: PCIe x1)
32-bit PCI 2 x 32-bit PCI slot, default clock is 33 MHz, PCI clock could be selected between 33 or 66 MHz by jumper (signal by PCH)
 SSD M.2 Storage
M.2 slot M.2 key M 2280 in support of PCIe x4 via CPU
 SATA/SAS Storage
PCH Built-in Storage IMB540 (4 x SATA-600) with RAID 0/1/5/10
 Ethernet
Additional GbE Controller 1 x 10/100/1000/2500 Mbps with Intel® I225-LM; supports Wake-on-LAN, PXE Boot ROM, TSN, and Intel® AMT with Intel vPro®
1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT; supports Wake-on-LAN, PXE Boot ROM
 I/O Interface / Other I/O
Serial 4 x RS-232 (internal box header)
2 x RS-232/422/485 (rear I/O)
USB 4 x USB 3.2 Gen2x1 (10Gbps) (rear I/O)
2 x Dual USB 3.2 Gen1x1 (5Gbps) (internal, box header)
4 x USB 2.0 (internal, pin header)
1 x USB 2.0 (internal, 180D type A)
PS/2 Combo Port 1 x PS/2 keyboard (internal box header)
1 x PS/2 mouse (internal box header)
Audio HD Codec audio as MIC-in/Line-in/Line-out
TPM TPM 2.0 (optional)
SMBus Yes
Digital I/O 8-channel programmable
