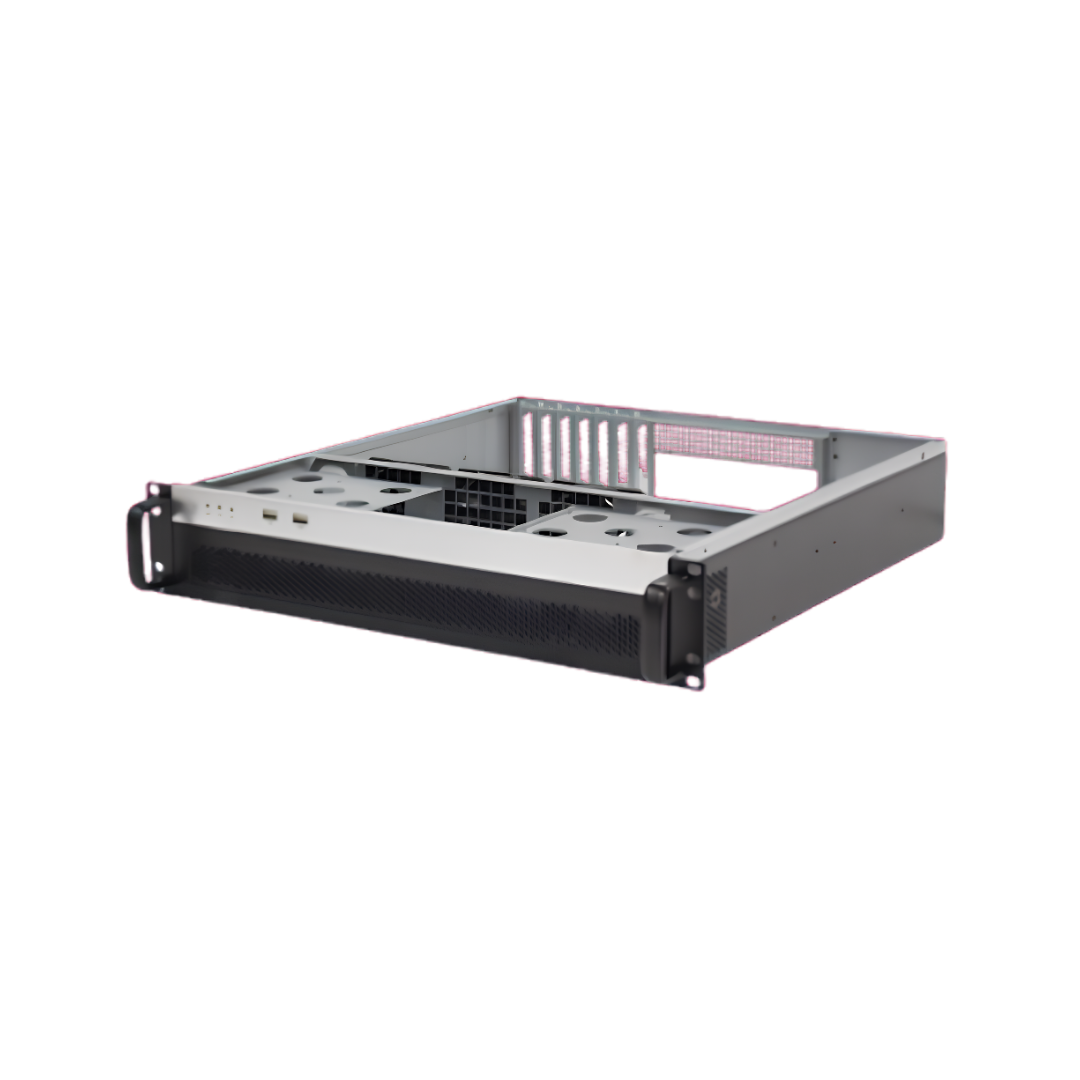

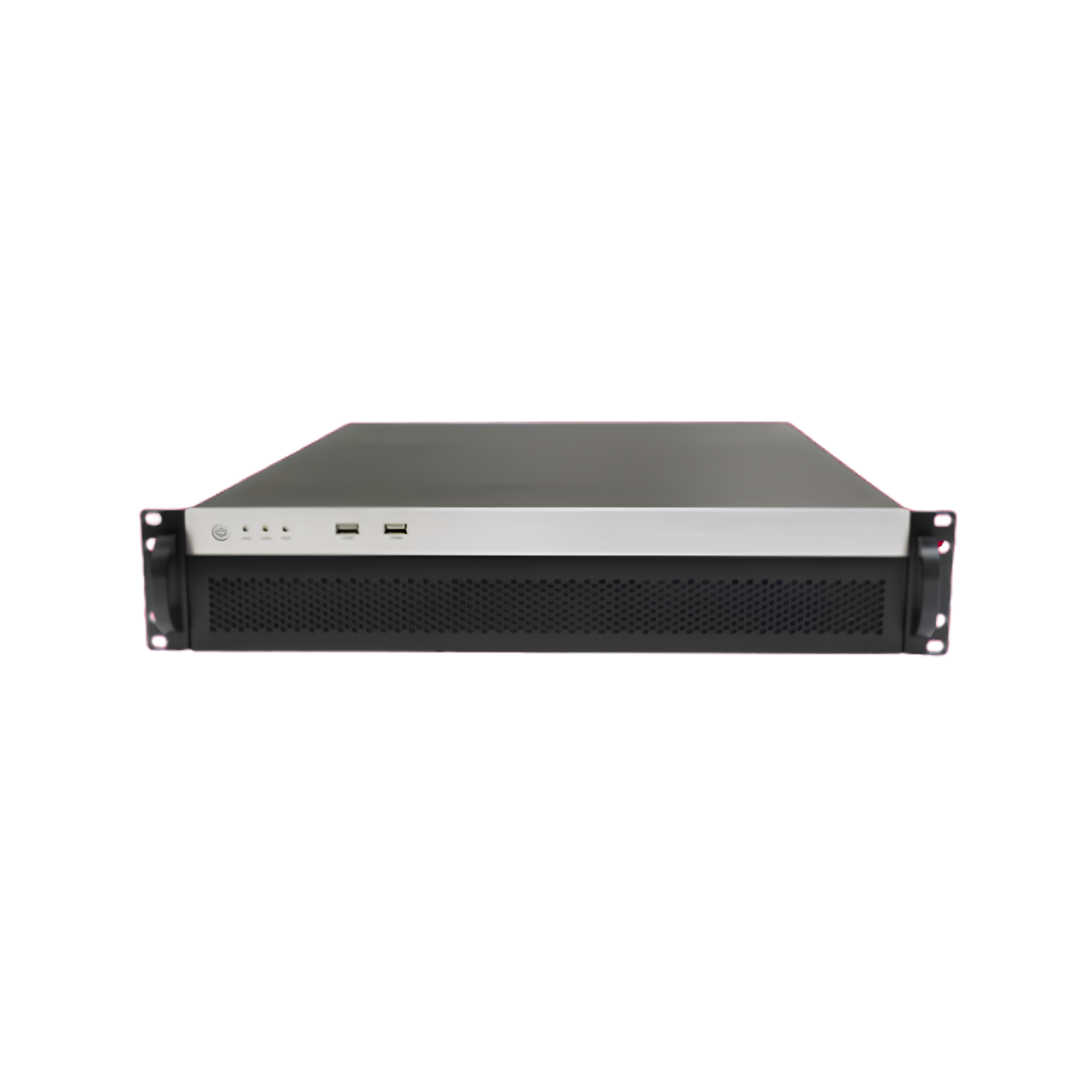

Model : AX480-530-2U Rackmount Industrial PC / Workstation
Specification:

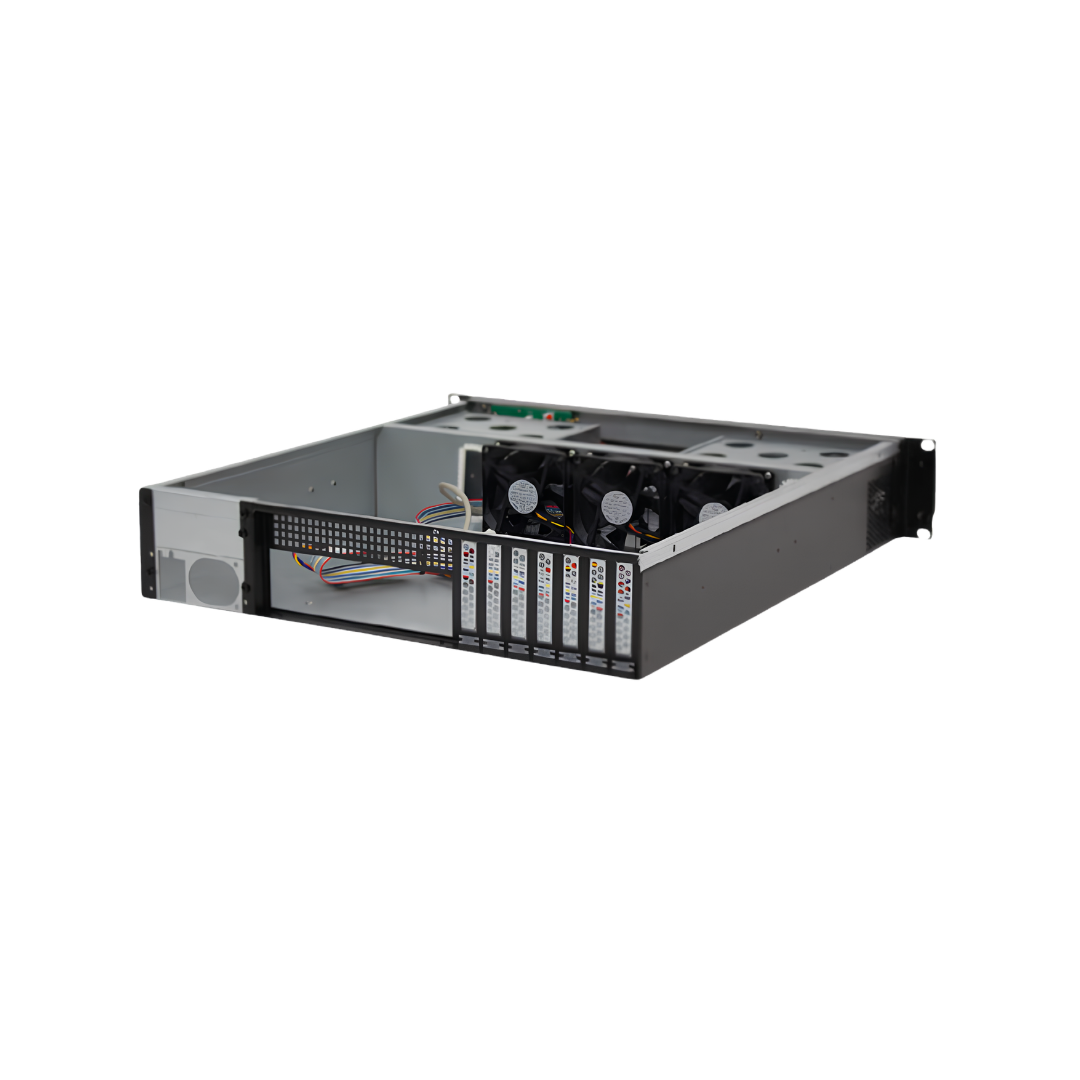

Structure: 7 slots 2U Rackmount Industrial PC / Workstation support up to 1 GPU only

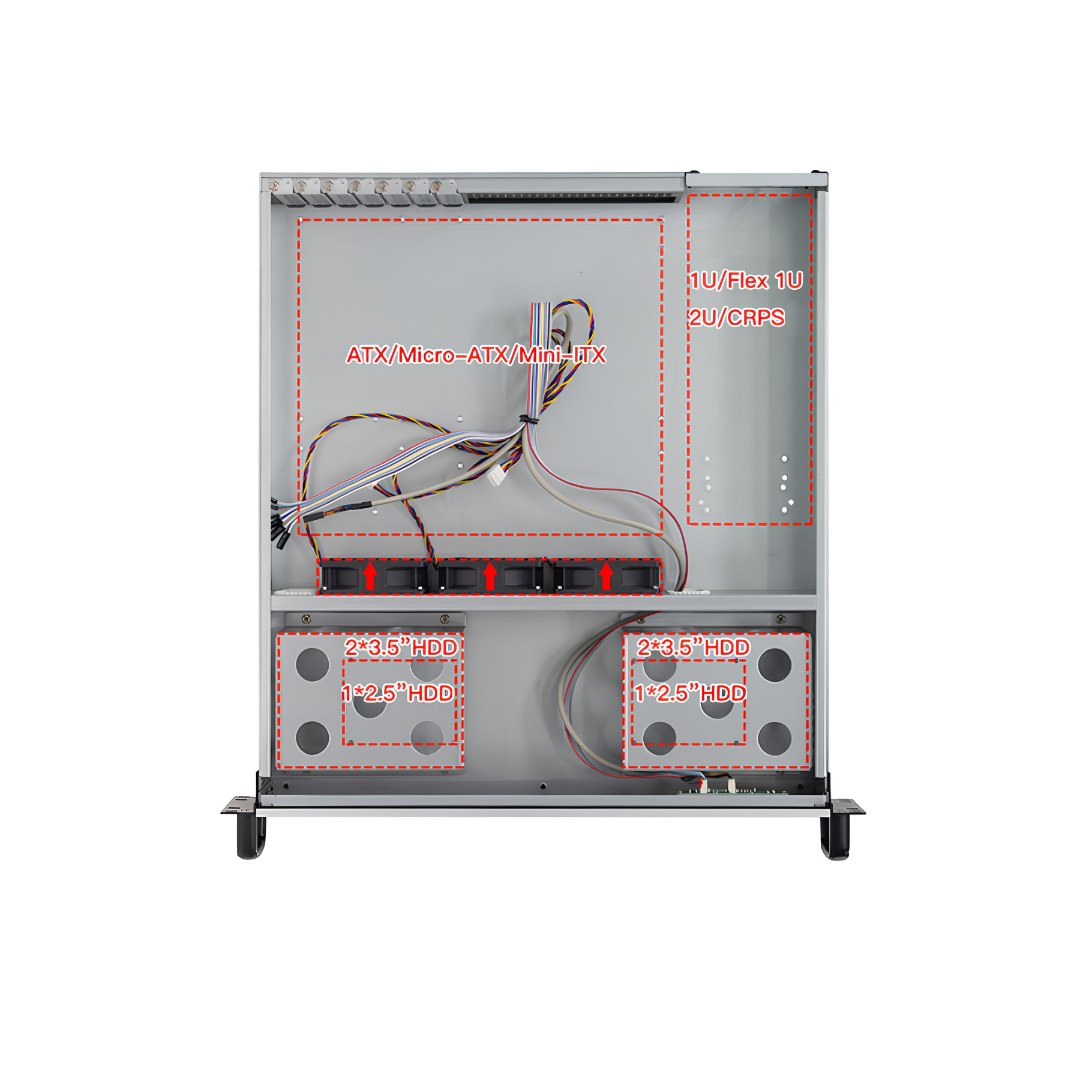

Size : (L) 480 x (W) 428 x (H) 88 mm with 3x 80mm middle ball-bearing cooling fan
Disk drive support : 4x 3.5″ / 2.5″ SATA SSD / HDD (Disk Bays Swappable Disk as option / Raid card)
Rear 2x USB 3.2 Gen 2×1 (10G) + 2x USB 3.2 Gen 1×1 (5G) (standard)
| Processor System | |
| CPU | Supports LGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3 or Xeon® W processor (up to 125W) processors |
| Socket | LGA1200 |
| Thermal Design Power | Up to 125W by proper cooling solution (only for this AX480-530-2U) |

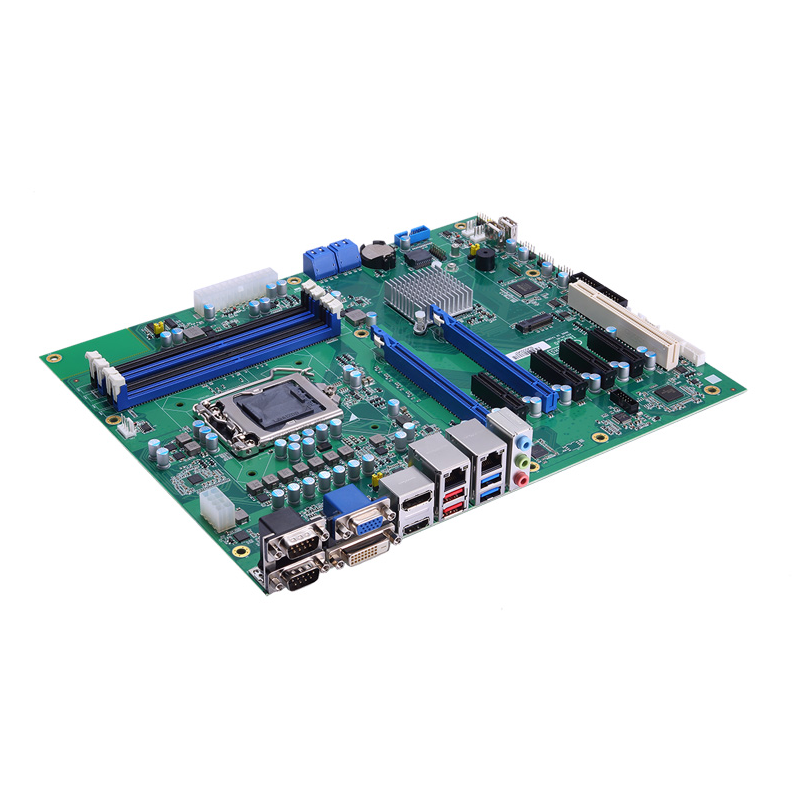

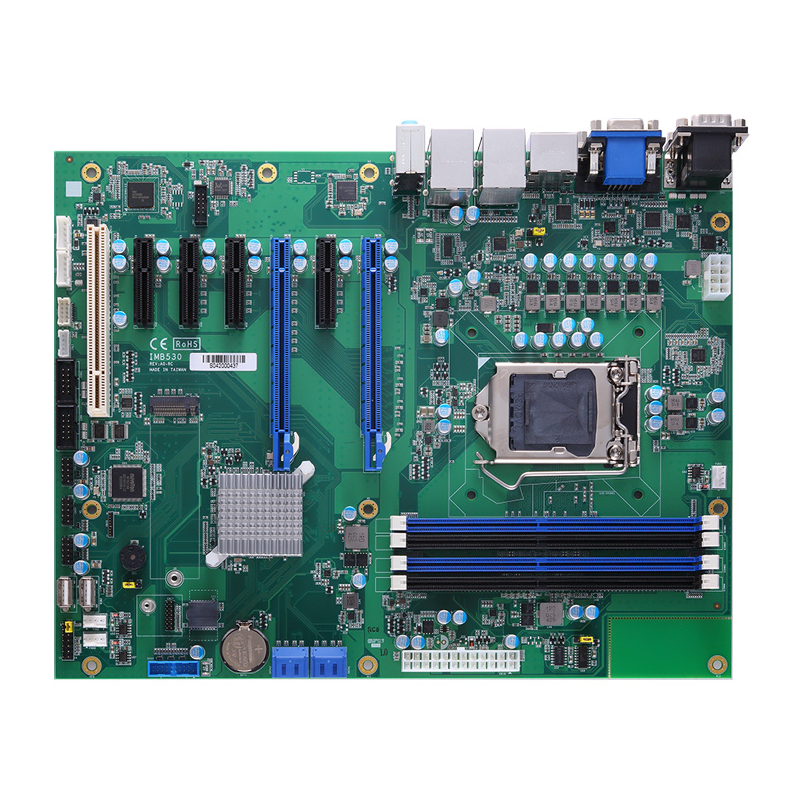

| Chipset | Intel® W480E |
| System Memory | |
| Supported DIMM Quantity | 4 x DDR4-3200 Long-DIMM, up to 128GB |
| Supported Type | 288-pin DDR4-2933 ECC/non-ECC un-buffered Long-DIMM, up to 128GB (ECC memory is available for Intel® Xeon® and Core™ i3 processors) |
| Max. Capacity per DIMM | 32GB (128GB total) |
| Max. DIMM Frequency | 2933 MHz or MT/s |
| Voltage | 1.1V |
| PCIe Expansion Interface | |
| PCIe x 16 | 2 x PCIe x16 (signal: x16 or x8 or signal: x0 or x8) |
| PCIe x 4 | 3 x PCIe x4 slot open ended (1 x Gen3 + 2 x Gen4), 1 x PCIe x4 slot open ended (signal: x1) |
| PCIe Mini Card | – |
| PCI | 1 x PCI slot |
| SSD M.2 Storage | |
| M.2 slot | 1 x M.2 key M 2280 (signal: PCIe x4/SATA) |
| SATA/SAS Storage | |
| PCH Built-in Storage | IMB530 (4 x SATA-600) with RAID 0/1/5/10 |
| Ethernet | |
| Additional GbE Controller | 1 x 10/100/1000 Mbps Ethernet with Intel® I219-LM; supports Wake-on-LAN, PXE Boot ROM, and iAMT 1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT; supports Wake-on-LAN, PXE Boot ROM |
| I/O Interface / Other I/O | |
| Serial | 2 x RS-232 (Internal box header) 2 x RS-232/422/485 (rear I/O) |
| USB | 2 x USB 3.2 Gen 2×1 (10Gbps) (rear I/O) 2 x USB 3.2 Gen 1×1 (5Gbps) (rear I/O) 2 x USB 3.2 Gen 1×1 (5Gbps) (internal, box header) 6 x USB 2.0 (internal, pin header) 2 x USB 2.0 (internal, 180D type A) |
| PS/2 Combo Port | 1 x PS/2 keyboard (internal box header) |
| Audio | HD Codec audio as MIC-in/Line-in/Line-out |
| TPM | TPM 2.0 (optional) |
| SMBus | Yes |
| Digital I/O | 8-channel programmable |
