AX-250-1U-540

RM0.01

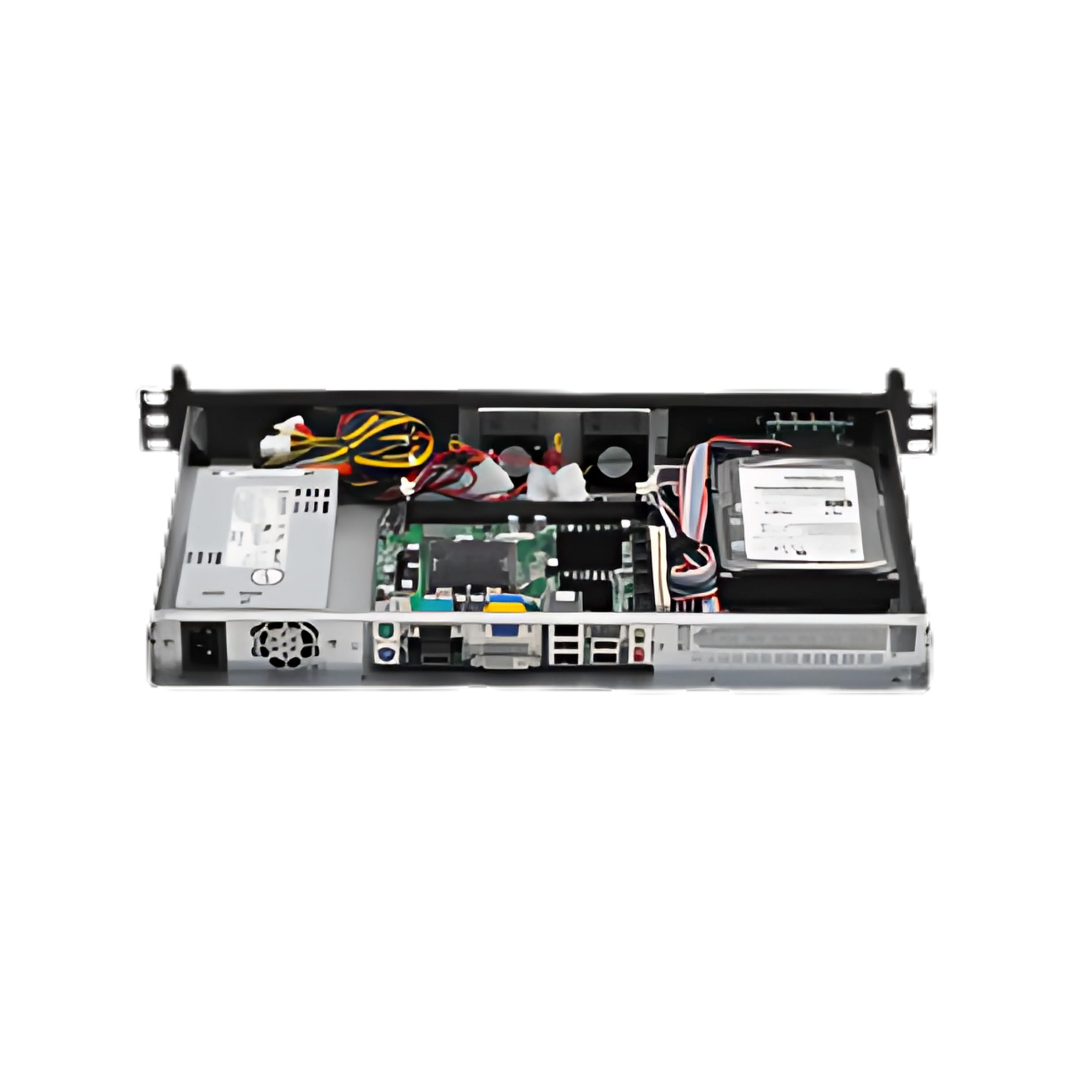

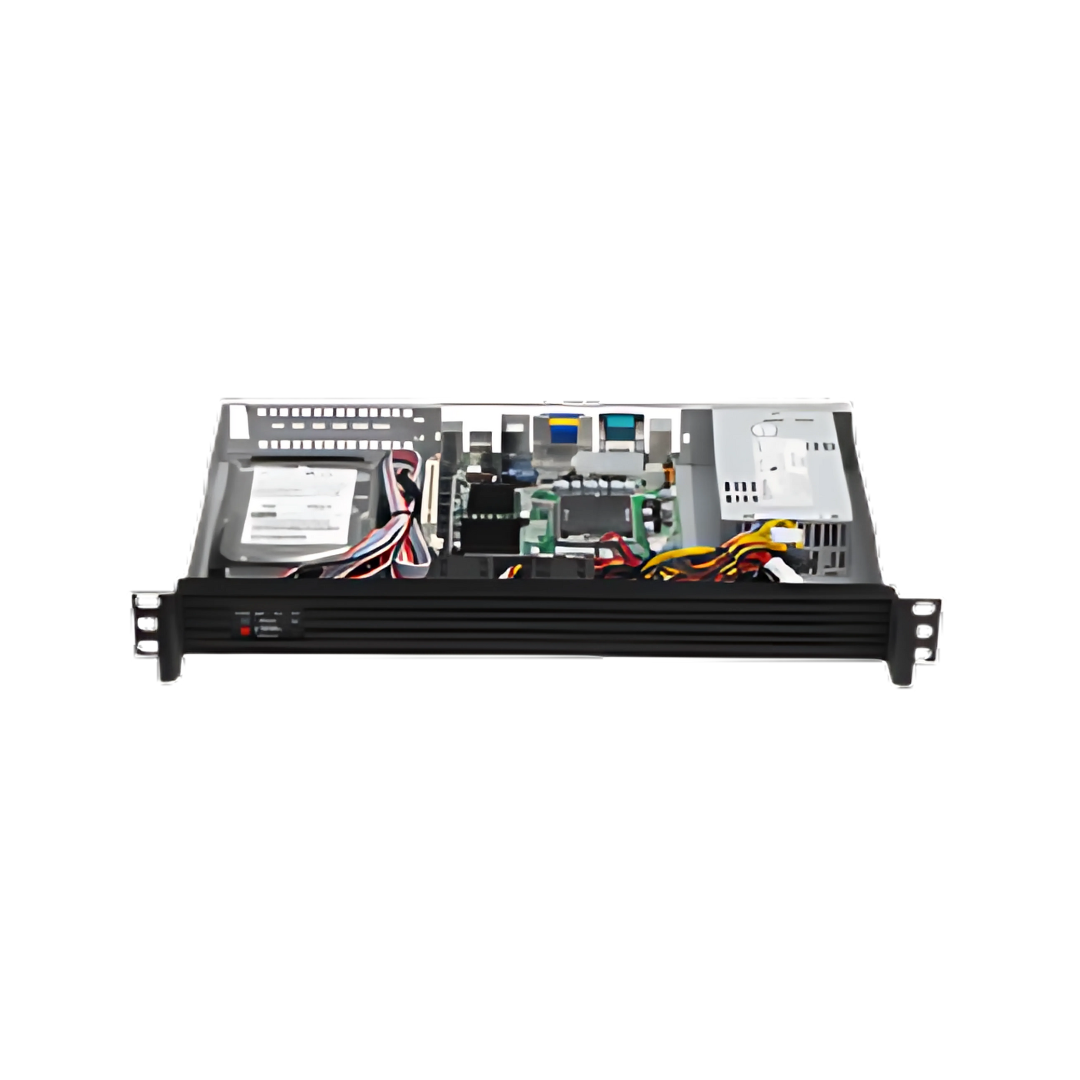

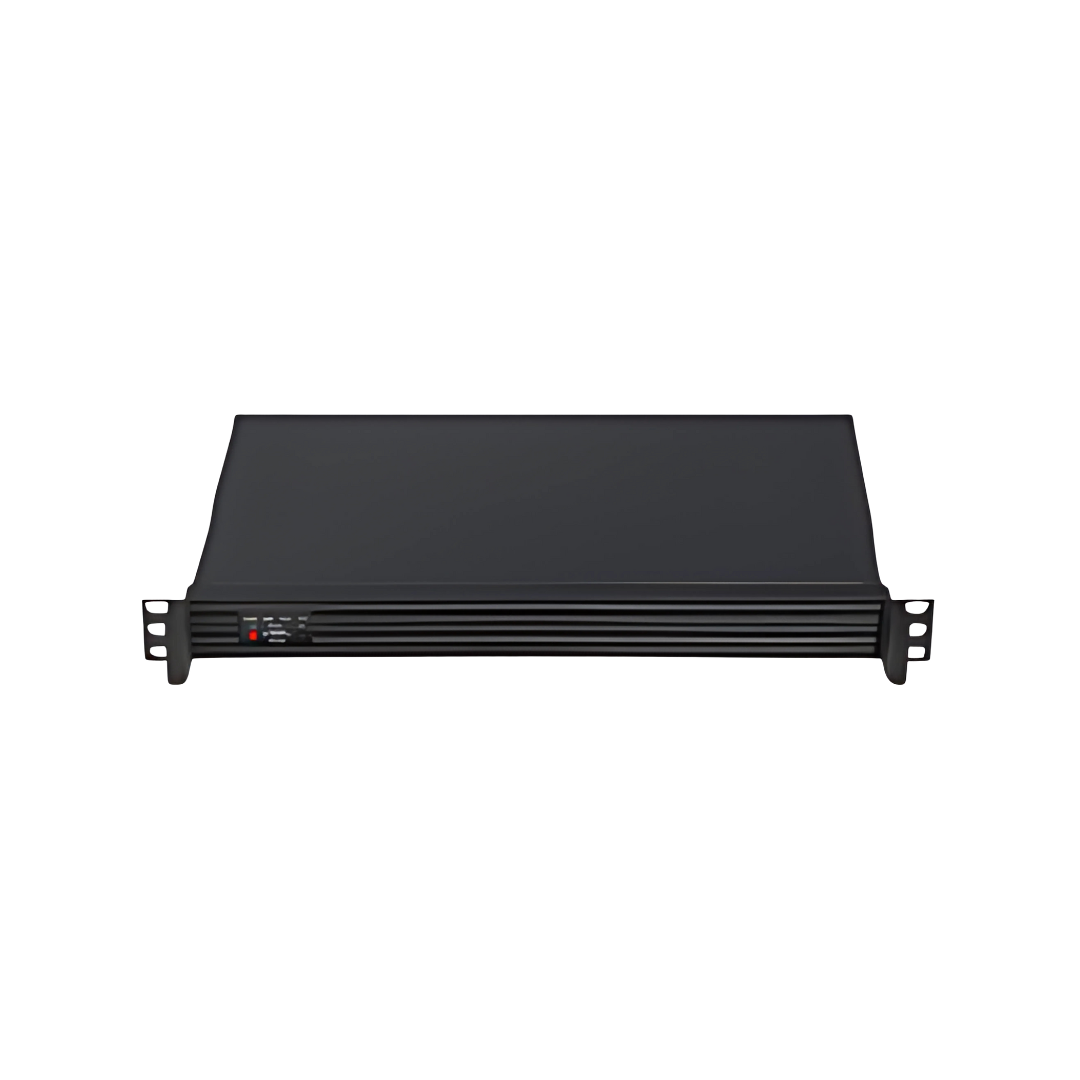

AX-250-1U-540P 1U Short and Compact Industrial PC / workstation

For instance 1U Short and Compact Industrial PC / workstation for industrial automation, system integrators and backup server.



Features:

  • FCLGA1200 10th Gen Intel® Core™ i9/i7/i5/i3 processor
  • Intel® H410 chipset
  • 2 DDR4 SO-DIMM for up to 64GB memory
  • 2 USB 3.2 Gen1 and 5 USB 2.0 (Total 6 x USB at Rear)
  • 6 COM port
  • 1 PCIe x16 and 1 M.2 Key E slot
  • 1 Full-size mini-PCIe slot
  • 2 SATA-600
  • 1 M.2 Key B for USB 3.2 & SATA interface
  • Ethernet 2 x 10/100/1000 Mbps with Intel® I210-AT and Intel® I219-V, supporting Wake-on-LAN and PXE Boot ROM
  • Audio HD Codec audio as MIC-in/Line-out with Realtek ALC897/888S
  • Serial 2 x RS-232/422/485 at rear panel
  • Preloaded with Microsoft Window 10 / 11 Pro Optional* IOT Enterprise High End 64 bits / optional server OS / Linux OS
Ubuntu Linux +
Windows 10 Pro / IOT +
Windows 11 Pro / IOT +

Model : AX-250-1U-540

Specification:

Structure:  AX-250-1U-540 1U Short and Compact Industrial PC / workstation

Size : (L) 250 x (W) 430 x (H) 45mm

Disk drive support : One 2.5″ SSD/HDD Disk Bays

Rear 2x USB 3.2 Gen1 (standard) + 5x USB 2.0 (standard)

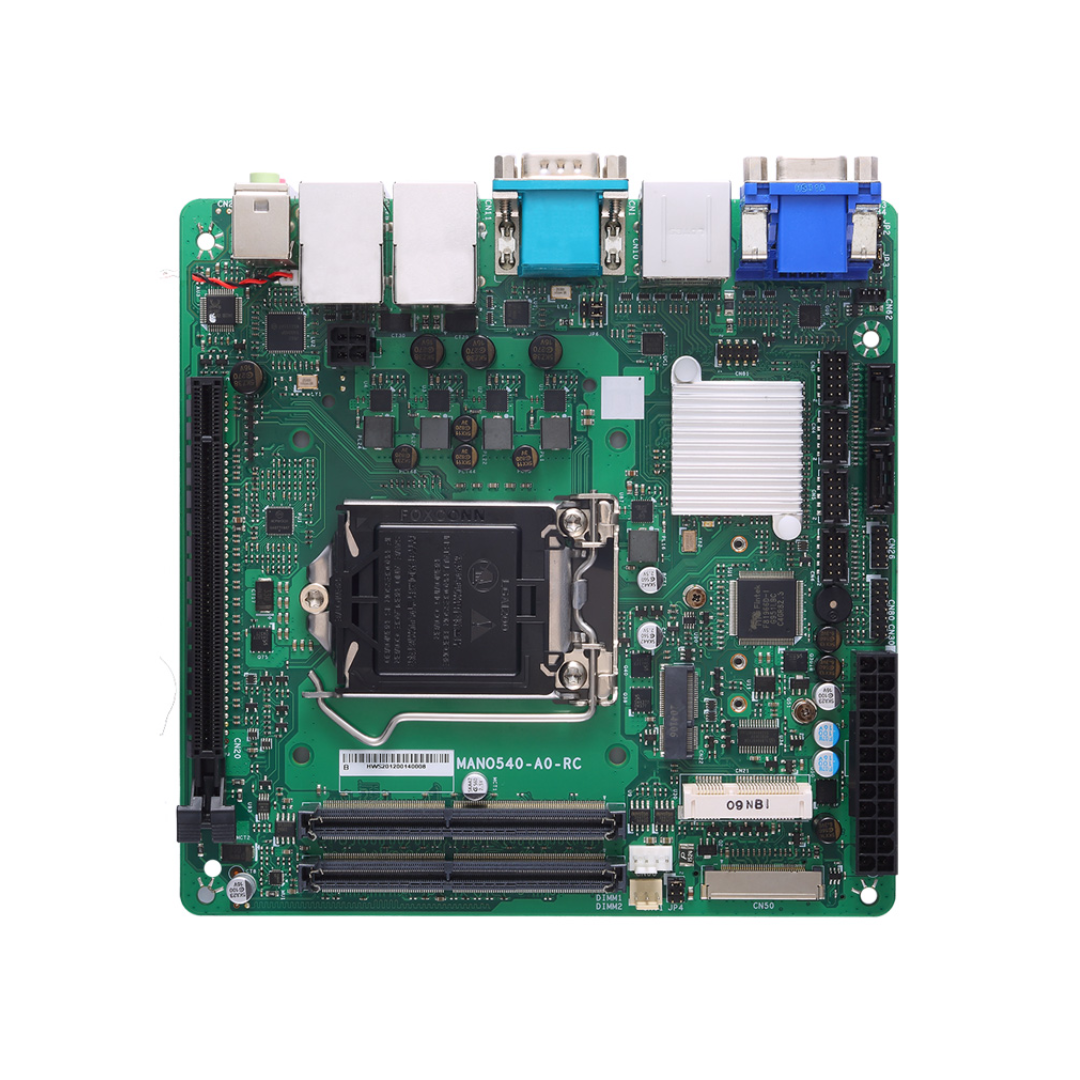

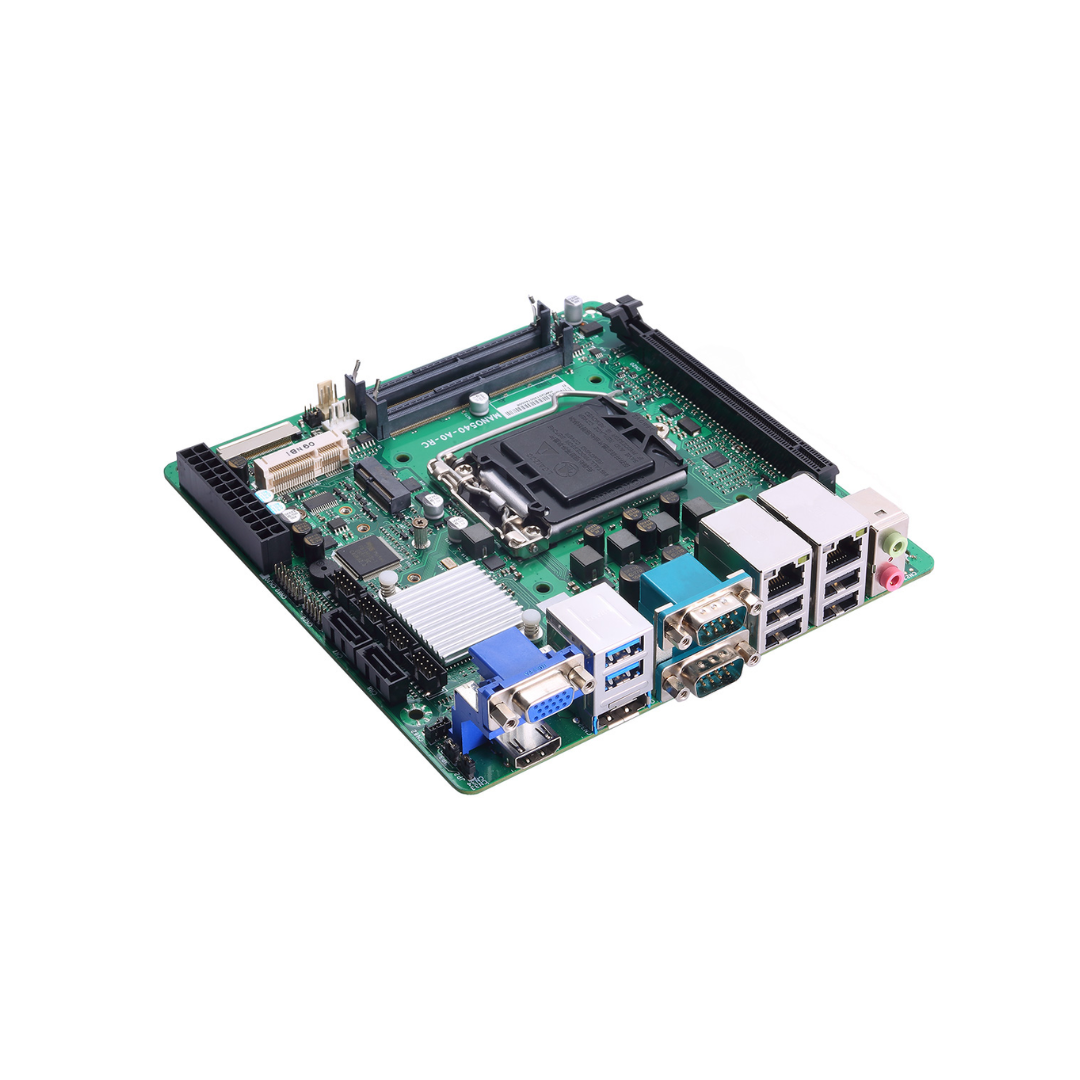

Processor System
CPU Supports 10th Gen Intel Core i9/i7/i5/i3, Pentium or Celeron Processors, up to 65W (Comet Lake)
Socket FCLGA1200
Thermal Design Power Up to 65W by proper cooling solution
Chipset Intel® H410
 System Memory
Supported DIMM Quantity 2 x DDR4-2933/2666/2400 SO-DIMM, up to 64GB
Supported Type 2 x DDR4-2933/2666/2400 SO-DIMM, up to 64GB
Max. Capacity per DIMM 32GB (64GB total)
Max. DIMM Frequency 2933/3200 MHz or MT/s
Voltage 1.1V
 PCIe Expansion Interface
PCIe x 16 1 x PCIe Gen4 x16
M.2 Key B 1 x M.2 Key B for USB 3.2 3042/3052 5G module & SATA interface for 2242/2280 SSD
M.2 Key E 1 x M.2 Key E 2230
PCIe Mini Card 1 x PCIe Mini Card slot
 SSD M.2 Storage
M.2 slot N/A
 SATA/SAS Storage
PCH Built-in Storage N/A
 Ethernet
Additional GbE Controller 1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT, supporting Wake-on-LAN and PXE Boot ROM
1 x 10/100/1000 Mbps Ethernet with Intel® I219-V, supporting Wake-on-LAN and PXE Boot ROM
 I/O Interface / Other I/O
Serial 2 x RS-232/422/485 (with +5V/+12V power)
4 x RS-232
USB 2 x USB 3.2 Gen1
5 x USB 2.0
PS/2 Combo Port N/A
Audio HD Codec audio as MIC-in/Line-in/Line-out
TPM Onboard TPM 2.0 (optional)
SMBus N/A
Digital I/O 8-channel in/out programmed
