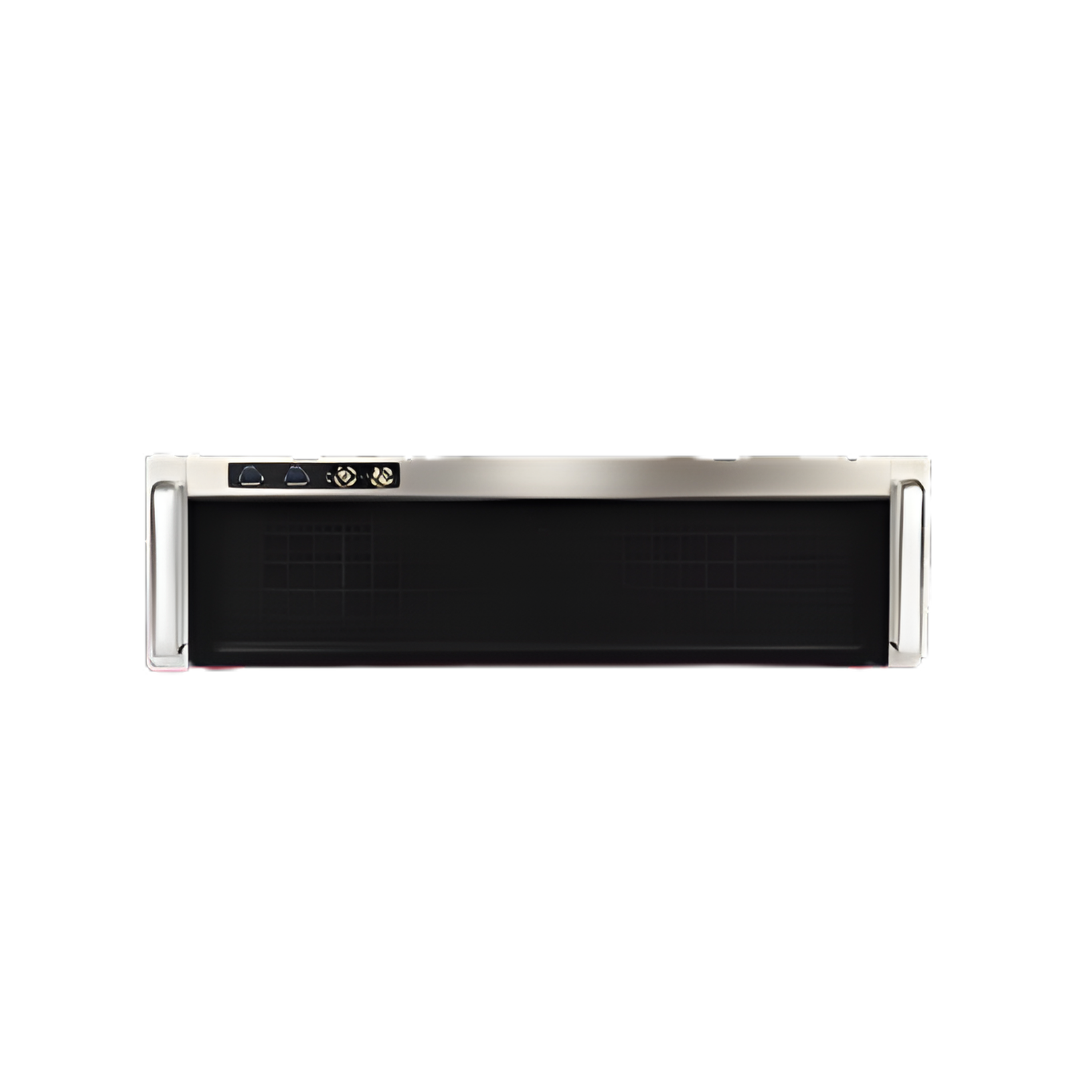

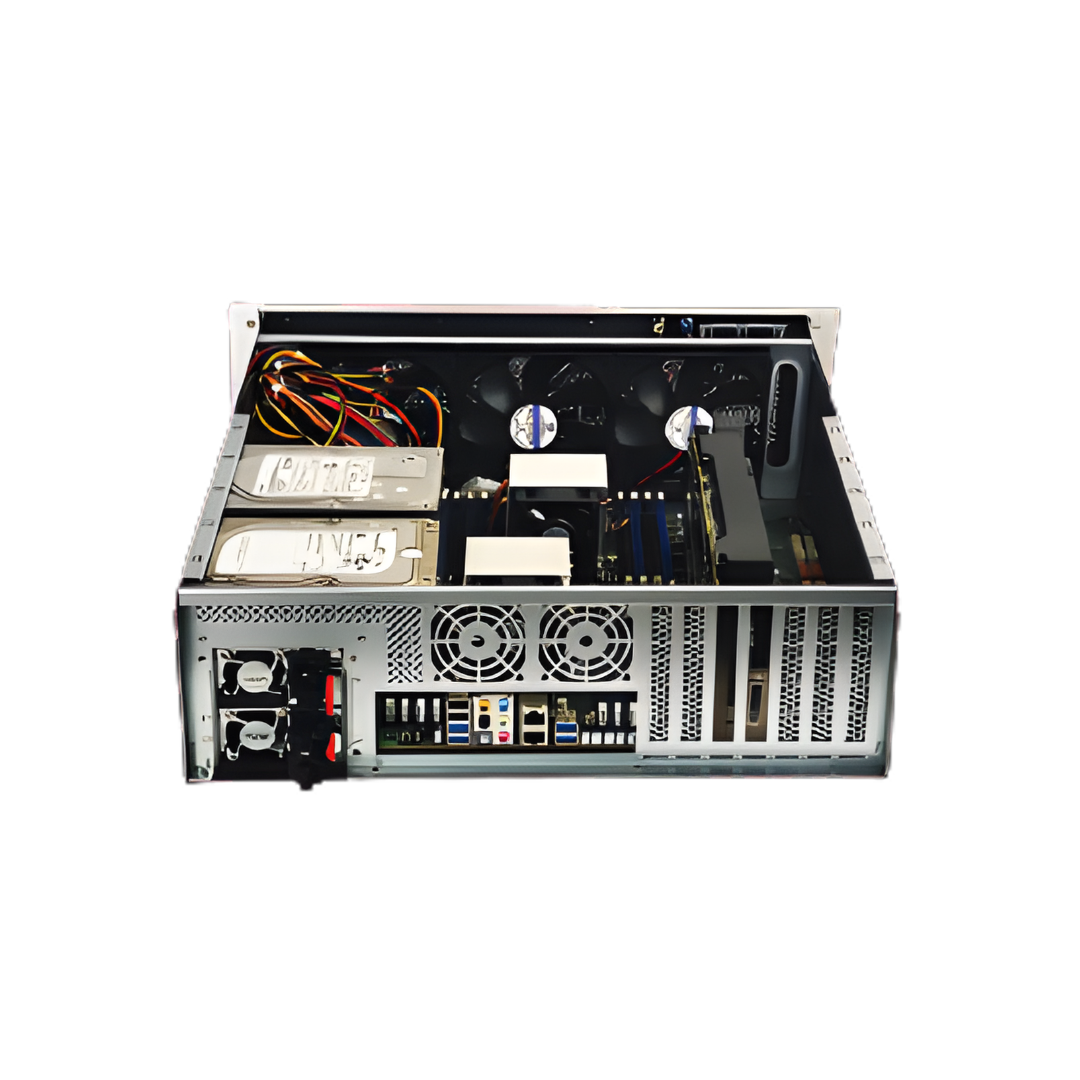

Model : AX348-3U-540-WC 3U Rackmount Industrial PC / Workstation
Specification:
Structure: 7 slots 3U Rackmount Industrial PC / Workstation support up to 2 GPU only
Size : (L) 640 x (W) 570 x (H) 290 mm with 3 front blower fan
Disk drive support : 4x 3.5″ / 2.5″ SATA SSD / HDD (Disk Bays Swappable Disk as option)
Rear 4x USB 3.2 Gen 2×1 (10G) (standard)
| Processor System | |
| CPU | Supports BTL-S/14th/13th/12th Gen Intel® Core™ processors |
| Socket | LGA1700 |

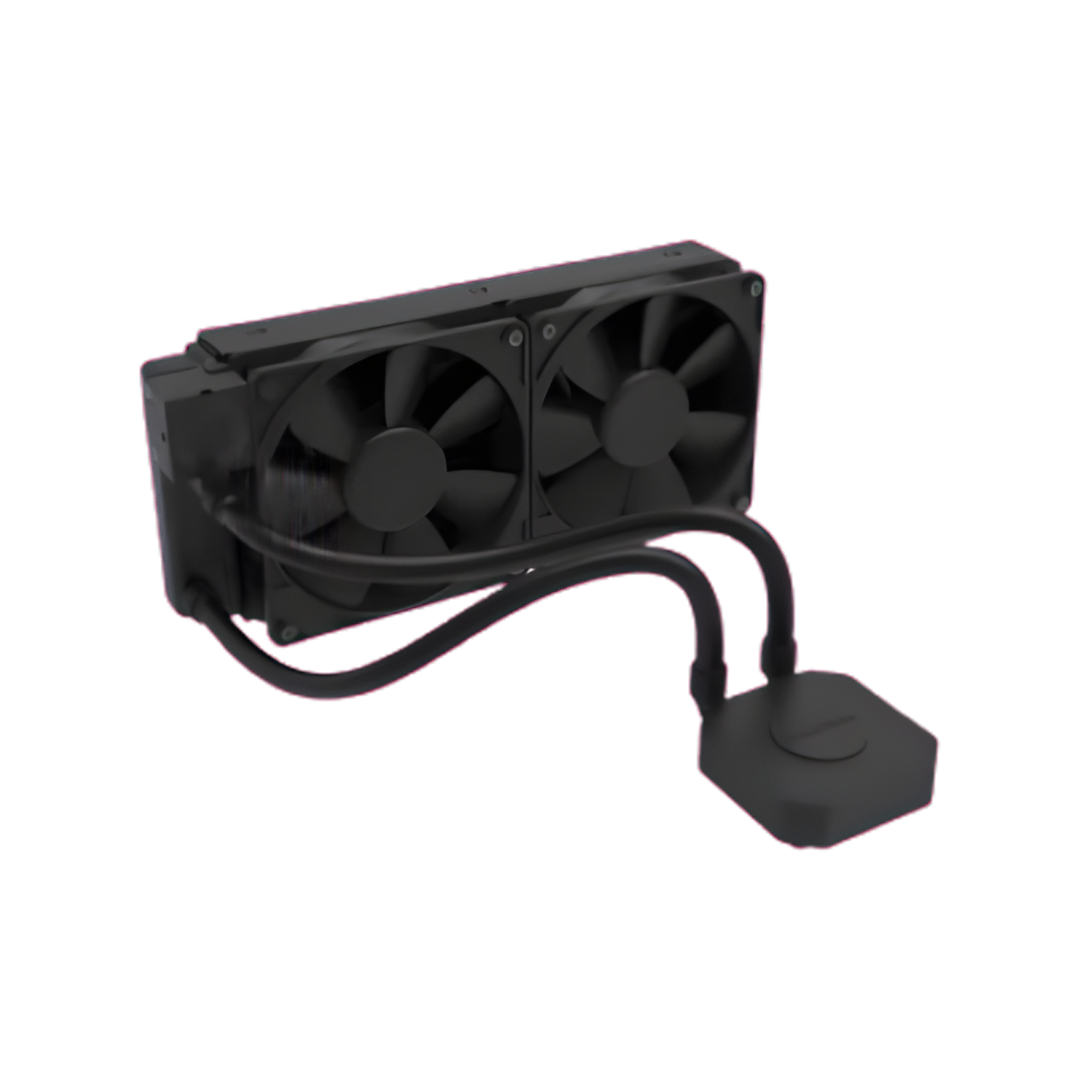

| Thermal Design Power | Up to 125W by proper cooling solution / Liquid cooling up to 250W TDP (only for this AX348-3U-540-WC) |
| Chipset | Intel® R680E |
| System Memory | |
| Supported DIMM Quantity | 4 x DDR4-3200 Long-DIMM, up to 128GB |
| Supported Type | DDR4-3200 ECC/non-ECC un-buffered Long-DIMM, up to 128GB (ECC memory available only for Intel® R680E) |
| Max. Capacity per DIMM | 32GB (128GB total) |
| Max. DIMM Frequency | 3200 MHz or MT/s |
| Voltage | 1.1V |
| PCIe Expansion Interface | |
| PCIe x 16 | 2 x PCIe Gen5 x16 (signal: PCIe x16 + PCIe x0 or PCIe x8 + PCIe x8) |
| PCIe x 4 | 3 x PCIe x4 slot open ended (1 x Gen3 + 2 x Gen4) (signal by PCH) |
| PCIe Mini Card | 1 x PCIe Mini Card slot (signal: PCIe x1) |
| 32-bit PCI | 2 x 32-bit PCI slot, default clock is 33 MHz, PCI clock could be selected between 33 or 66 MHz by jumper (signal by PCH) |
| SSD M.2 Storage | |
| M.2 slot | M.2 key M 2280 in support of PCIe x4 via CPU |
| SATA/SAS Storage | |

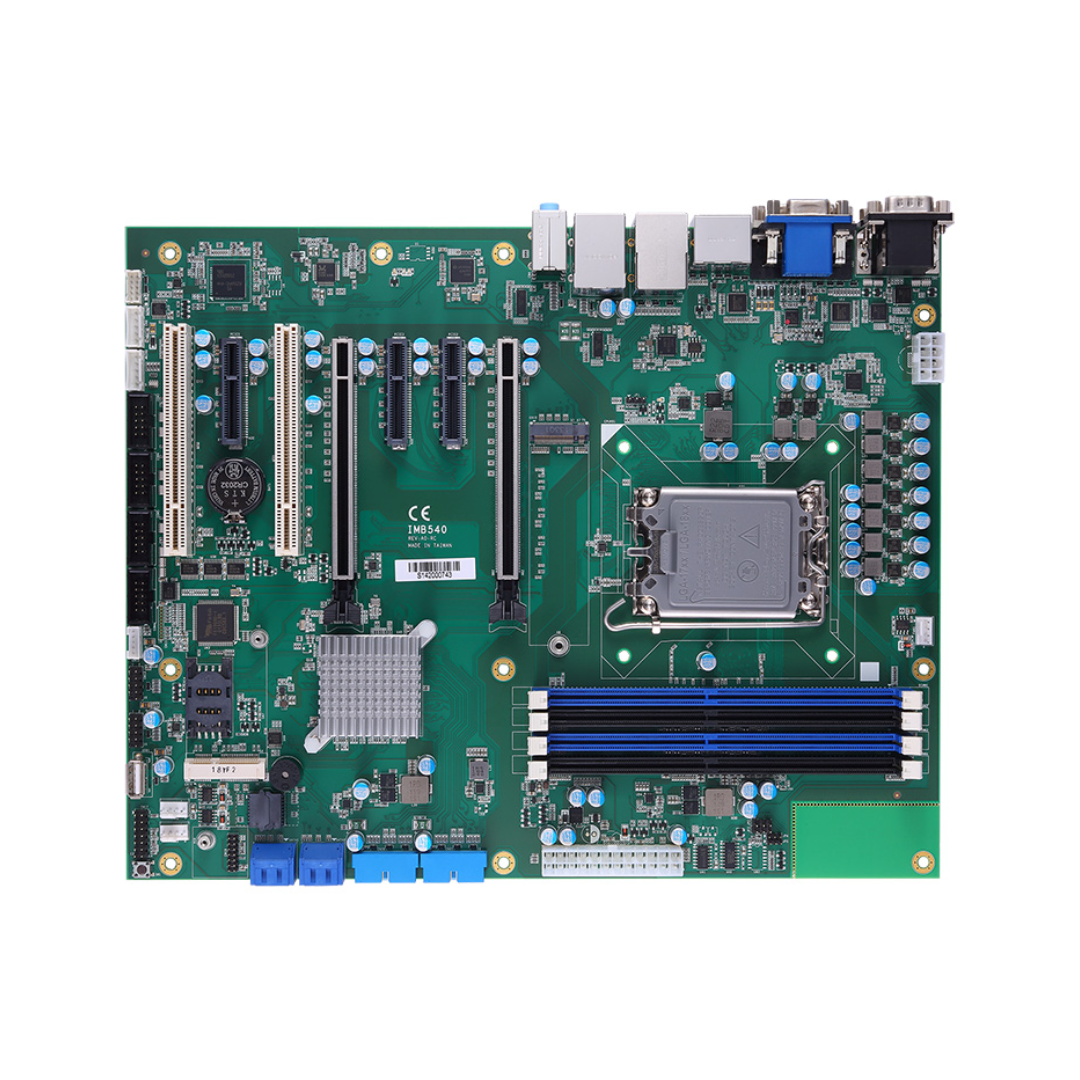

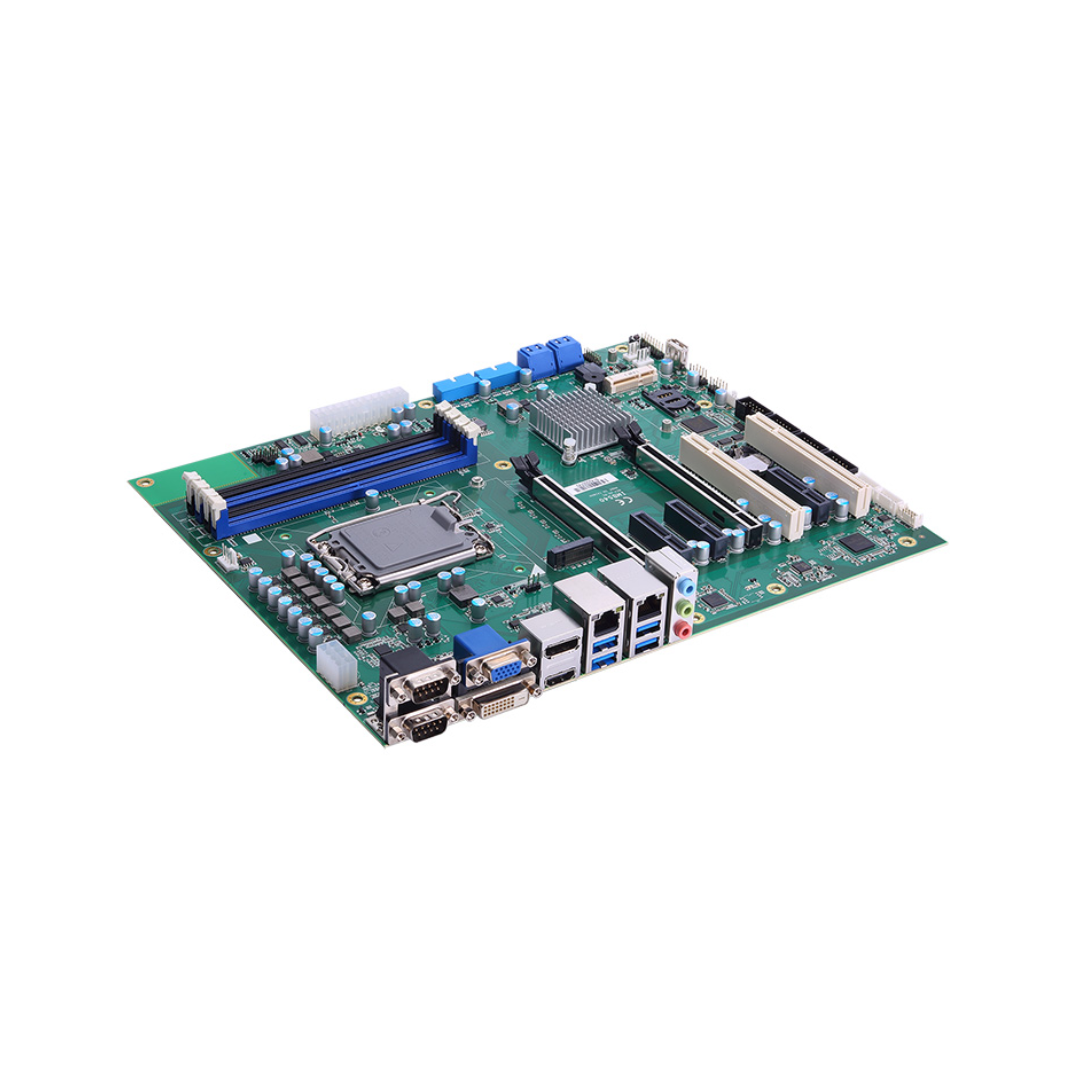

| PCH Built-in Storage | IMB540 (4 x SATA-600) with RAID 0/1/5/10 |
| Ethernet | |
| Additional GbE Controller | 1 x 10/100/1000/2500 Mbps with Intel® I226-LM supporting Wake-on-LAN, PXE Boot ROM, TSN, and Intel® AMT with Intel vPro® 1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT supporting Wake-on-LAN and PXE Boot ROM |
| I/O Interface / Other I/O | |
| Serial | 4 x RS-232 (internal box header) 2 x RS-232/422/485 (rear I/O) |
| USB | 4 x USB 3.2 Gen 2×1 (10G) (rear I/O) 2 x Dual USB 3.2 Gen 1×1 (5G) (internal, box header) 4 x USB 2.0 (internal, pin header) 1 x USB 2.0 (internal, 180D Type-A) |
| PS/2 Combo Port | 1 x PS/2 keyboard (internal box header) 1 x PS/2 mouse (internal box header) |
| Audio | HD Codec audio as MIC-in/Line-in/Line-out |
| TPM | TPM 2.0 (optional) |
| SMBus | Yes |
| Digital I/O | 8-channel programmable |
