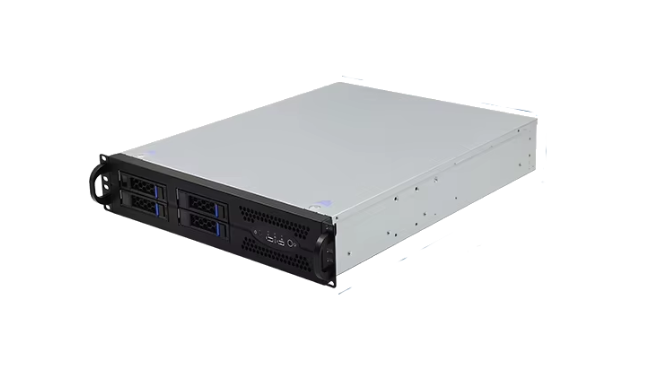

AX-704-540-2U GPU Industrial Workstation

RM0.01

AX-704-540-2U-GPU Rackmount Industrial Workstation

19″ rackmount / Desktop based Industrial GPU workstation
suitable for industrial applications with 800W /850W
Single or Redundant Power supply for mission critical
application.

Features:

  • 2U rackmount design, meets CE certification
  • 4 x Low profile and 3 x Full profile slot (Good for single GPU only)
  • 4x 3.5 “ / 2.5″ Disk Bays Swappable Disk as option
  • Equipped with a PS/2 type power supply Standard 850W / Single or Redundant Power
  • 3x 80mm ball-bearing cooling fan middle for quick Heat dissipation
  • Lockable door over front Drive Bays
  • Internal USB connector for a license key available on IMB540 main board
  • Standard 1 Serial ports (optional up to total of 6 Serial ports via cable connection – refer to the main board)
  • Front access 2 USB ports (USB 2.0) + rear 4 USB 3.2 (standard) + additional option available
Ubuntu Linux +
Windows SERVER 2019 +
Red hat linux +
CENTOS +
Category: Tags: , , ,

Model : AX-704-540-2U GPU Industrial Workstation

Specification:

Structure:  2U 19″ Rackmount support up to 1 GPU only

Size : (L) 570 x (W) 438 x (H) 88mm

Disk drive support : 4x 3.5″ / 2.5″ SATA SSD / HDD (Disk Bays Swappable Disk as option)

2x USB 2.0 + rear 4x USB 3.2 (standard) + additional option available

Processor System
CPU Supports 13th/12th Gen Intel Core i9/i7/i5/i3, Pentium or Celeron Processors
Socket LGA1700
Thermal Design Power Up to 125W by proper cooling solution
Chipset Intel® R680E
 System Memory
Supported DIMM Quantity 4 x DDR4-3200 ECC/Non-ECC un-buffered Long-DIMM, up to 128GB
Supported Type 4 x DDR4-3200 ECC/Non-ECC un-buffered Long-DIMM, up to 128GB
Max. Capacity per DIMM 32GB (128GB total)
Max. DIMM Frequency 3200 MHz or MT/s
Voltage 1.1V
 PCIe Expansion Interface
PCIe x 16 2 x PCIe Gen4 x16 (signal: x16 + x0 or x8 + x8)
PCIe x 4 3 x PCIe x4 slot open ended (1 x Gen3 + 2 x Gen4) (signal by PCH)
PCIe Mini Card 1 x PCIe Mini Card slot (signal: PCIe x1)
32-bit PCI 2 x 32-bit PCI slot, default clock is 33 MHz, PCI clock could be selected between 33 or 66 MHz by jumper (signal by PCH)
 SSD M.2 Storage
M.2 slot M.2 key M 2280 in support of PCIe x4 via CPU
 SATA/SAS Storage
PCH Built-in Storage IMB540 (4 x SATA-600) with RAID 0/1/5/10
 Ethernet
Additional GbE Controller 1 x 10/100/1000/2500 Mbps with Intel® I225-LM; supports Wake-on-LAN, PXE Boot ROM, TSN, and Intel® AMT with Intel vPro®
1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT; supports Wake-on-LAN, PXE Boot ROM
 I/O Interface / Other I/O
Serial 4 x RS-232 (internal box header)
2 x RS-232/422/485 (rear I/O)
USB 4 x USB 3.2 Gen2x1 (10Gbps) (rear I/O)
2 x Dual USB 3.2 Gen1x1 (5Gbps) (internal, box header)
4 x USB 2.0 (internal, pin header)
1 x USB 2.0 (internal, 180D type A)
PS/2 Combo Port 1 x PS/2 keyboard (internal box header)
1 x PS/2 mouse (internal box header)
Audio HD Codec audio as MIC-in/Line-in/Line-out
TPM TPM 2.0 (optional)
SMBus Yes
Digital I/O 8-channel programmable
